Another design verification is added to an extensive library of ELSTEEL certificates.

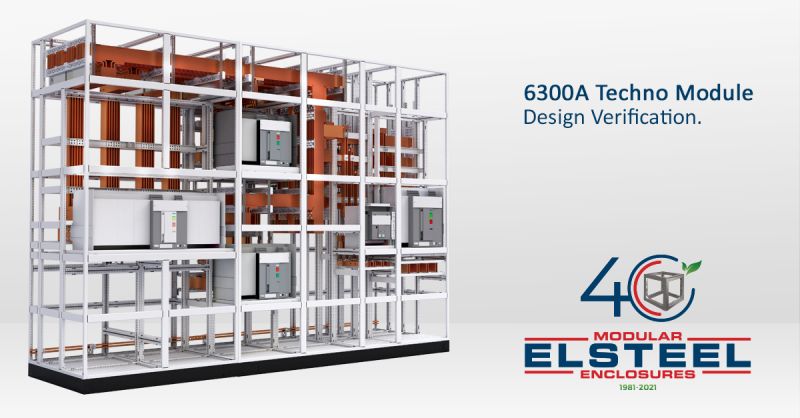

The ELSTEEL 6300A Techno Module has passed design verification test as per IEC 61439-2 with Emax 2 series circuit breakers from ABB. These tests were conducted in DEKRA test labs in the Netherlands.

Important Specifications & Ratings:

- Compartment Dimensions (W×H×D):

• 1600A 400×600×400 mm
• 2500A 600×600×400 mm
• 4000A 600×600×400 mm (double stack)
• 6300A 1200×600×400 mm

- Temperature rise tests were done at 35°C and 50°C

- Main busbar short-circuit ratings:

• Icw=100 kA/1s

- Main protective earth conductor:

• Icw=60 kA/1s with 2×10×40 mm2 copper

- All breakers were successfully tested at 415V and 690V

- New design of Movable Plinth achieved maximum weight of transport section of 2300 kg! New design is applicable for fork lift and lifting trolley.

If you have any questions about Techno Module, this certification, or any other ELSTEEL products, don't hesitate to contact us.
