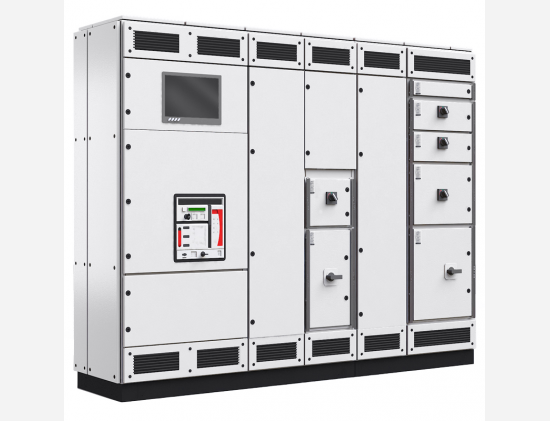

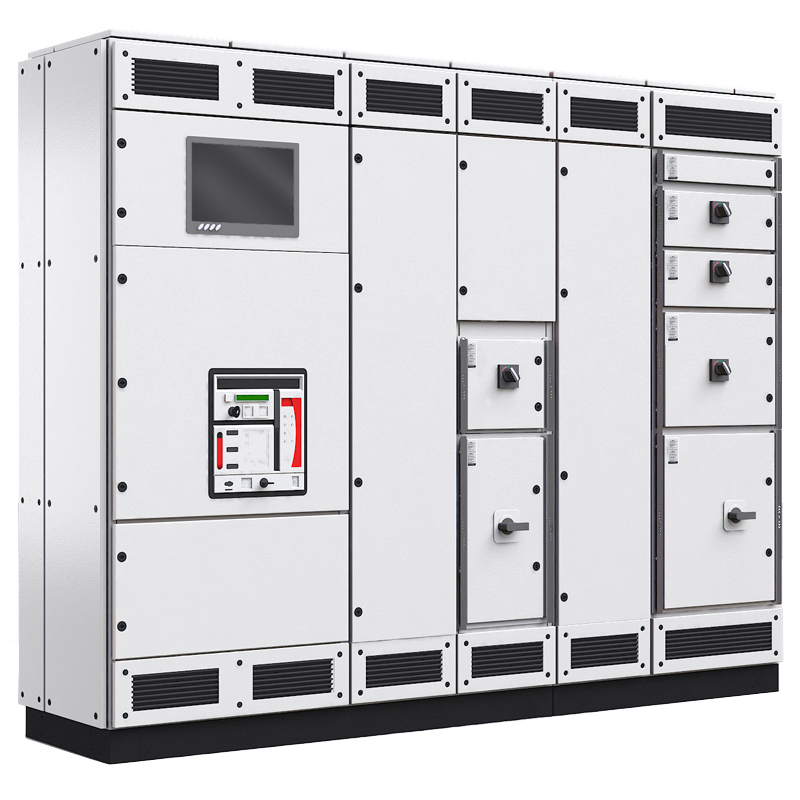

Techno Module

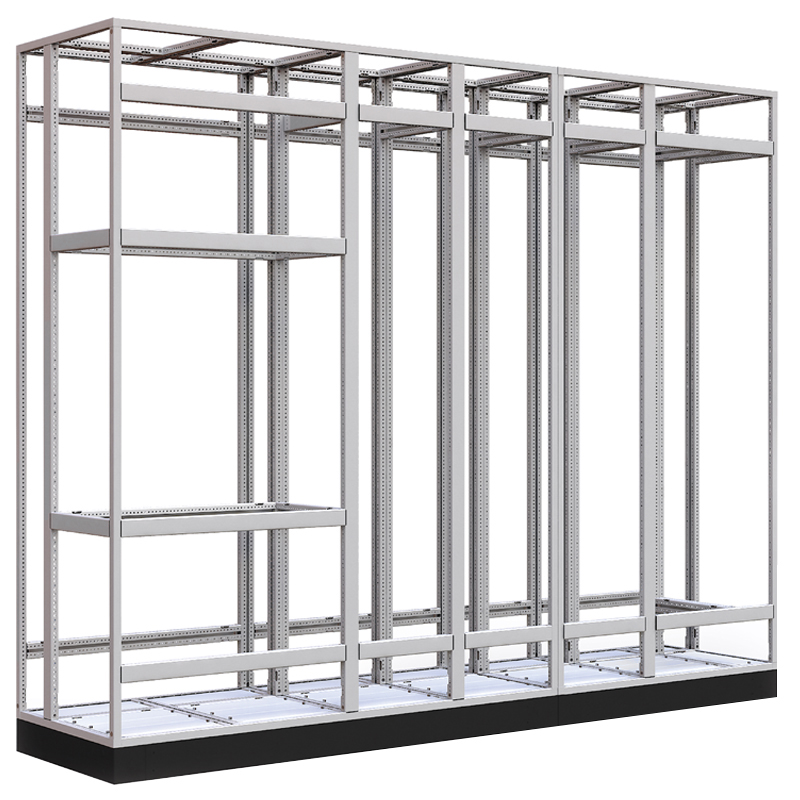

Techno Module is a modern, patented modular construction system for building LV Panelboards, Switchboards and Motor Control Centers. Techno Module is the original 200mm modular grid design and is easy to assemble, easy to expand during and after construction, open to all circuit breaker brands and will technically fulfill all requirement that you might have.

Panels can be designed to suit any installation and site conditions, front and rear cable access options available as standard. Main busbars can be positioned at the top, bottom or rear of the panel. Panels can be arranged as ‘U-Shape’ & ‘L-Shape’ etc.

Droppers and risers can sit in the side or rear of the compartments. Outgoing cables can be arranged at the left, right, top or bottom. So, there are no limitations on how a panel can installed into a predetermined switchroom.

Find out more about Techno Module busbar system.

In Techno Module can be installed different types of inserts.

Best solution to build motor control center, to use plug&power.

All systems are IEC 61439 Design Verified. Techno module are assembled under strict quality assurance - ISO 9001- certified.

Brochure download

Electrical data
Mechanical data
Certificates
References

Nominal voltage (Ue): 415V / 690V / 1000V

Isolation voltage (Ui): 690V /1000V
Frequency (f): 50Hz

Impuls voltage (Uimp): up 12kV

Nominal current (In): up 7100A

Breaking capacity (Icw): up 100kA/1s & 80kA/3s

Polution degree: 3

Material group: IIIa

Eathing systems: TN-C, TN-S, TN-C-S, TT, IT

Orientation: front / back to back
Cable conection: from above / top
Compartments: fixed, plug-in and withdrawable
Maintenance: front / back
IP rating: IP43, IP44, IP54, IP55
Form of internal separation: 2a, 2b, 3a, 3b, 4 form 1-7 types
Maximal transportation unit: W2200/H2400/D2200mm

IEC 61439-1 (Low-voltage switchgear and controlgear assemblies - Part 1: General rules)
IEC 61439-2 (Low-voltage switchgear and controlgear assemblies - Part 2: Power switchgear and controlgear assemblies)
IEC 60529 (Degrees of protection provided by enclosures IP Code)
IEC 61641 (Enclosed low-voltage switchgear and controlgear assemblies - Guide for testing under conditions of arcing due to internal fault)
UL/ cUL Mark for TM Panels and components
Lloyds Register Type Approval
ABS type approval certificate
Russian Maritime Register of Shipping (RS) Type approval
Bureau Veritas (BV) Type Approval Certificate
Det Norske Veritas (DNV)
Gernamischer Lloyd (GL) Type Approval Certificate


Products: Elsteel TM
Application: Industry

Main distribution: Elsteel TM
Nominal current: 4000A
Segregation: 3b
Busbar trunking: 4000A, 2500A
Total lenth: 700m
Installed power: 2MW
Area: 24000m²

Hollister Incorporated Plant in Kaunas


Products: Elsteel TM
Application: Data centers

Main switchgear: Elsteel TM
Nominal current: 1600A
Segregation: 4b
Installed power: 1MW
Area: 20000m2 Barclays Group Operations Limited


Products: Techno Module
Application: Industry

Main switchboard: Techno Module
Rated current: 4000A
Form: 4b
Distribution switchboards: Rittal, Hensel
Busbar trunking: Sivacon 8PS 4000A
Rated power: 9MW

Klaipeda oil terminal. The new storage tank park

Techno module
Infrastructure

Main switchboard: Techno Module
Rated current 3200A
Form 3b
Rated power 4MW

Ignalina nuclear power plant. Nuclear fuel waste storage


Products: Techno Module
Application: Industry

Main switchboard: Techno Module
Rated current: 2500A
Form: 2b
Distribution switchboards: Elsteel, Legrand

NARBUTAS office furniture factory


Products: Techno Module
Application: Buildings

Main switchboard: Techno Module
Rated current: 630A
Form: 1

Ministry of Foreign Affairs of the Republic of Lithuania


Products: Techno Module
Application: Industry

Main switchboard: Techno Module
Rated current: 630A
Form: 1
Distribution switchboards: Elsteel, Hager, Legrand

BIOK LAB cosmetics plant


Products: Techno Module
Application: Industry

Main switchboard: Techno Module
Rated current: 4000A
Form: 2b
Distribution switchboards: Elsteel, Schneider electric

Inno Line furniture factory

Products: Techno Module, Graziadio busbars
Application: Industry

Main switchboard: Techno Module
Rated current: 4000A
Form: 3b
Distribution switchboards: Elsteel, Schneider electric, Eldon

Busbars 4000A

REHAU factory

16958_45b581ef66b2852615e0f7fb6d41a17e_1646425598-7b67b7cfcaa55bad6a96fc5ca74a8717.jpg

Products: Techno Module
Application: Buildings

Main switchboard: Techno Module
Rated current: 630A
Form: 1

Government of the Republic of Lithuania


Products: Techno Module
Application: Commercial

Main switchboard: Techno Module
Rated current: 800A
Form: 1
Distribution switchboards: Elsteel, Legrand

RENAULT representatives

tokvila-servisas-savanoriu-pr-274-02-1024x546_1646401219-383794ea94c4011bb3ba07e8e01c3d67.jpg

Techno module
Application: Commercial

Main switchboard: Techno Module
Rated current 400A
Form 1
Rated power 0,3MW

TOYOTA sales and maintenance center Tokvila


Products: Techno Module
Application: Data centers

Main switchboard: Techno Module
Rated current: 3200A
Form: 2b Data center in Norway


Products: Techno Module
Application: Infrastructure

Main switchboard: Techno Module
Rated current: 400A
Form: 1
Distribution switchboards: Elsteel

Northern apron at Vilnius airport


Products: Techno Module
Application: Commercial use

Main switchboard: Techno Module
Rated current: 400A
Form: 1
Distribution switchboards: Elsteel

Historical mansion "Senatoriu pasazas"


Products: Techno Module
Application: Commercial

Main switchboard: Techno Module
Rated current: 1000A
Form: 2b
Distribution switchboards: Elsteel, Eldon

Vilnius Outlet


Techno module
Industry

Main switchboard: Techno Module
Rated current 3200A
Form 3b
Rated power 2MW

HELLA. Automotive electronics plant


Products: Techno Module, busbars
Application: Industry

Main switchboard: Techno Module
Rated current: 1000A
Form: 2b

Busbars 630A, 400A - 160 meters

Bär Cargolift plant


Products: Techno Module
Application: Industry

Main switchboard: Techno Module
Rated current: 800A
Form: 1

Distribution switchboards: Hensel

1MW solar power plant

vilniaus-kogeneracine-jegaine-5f4d175d11de0_1646740877-f47cd8c5eec6b751f6eb151bfa3d8eba.jpg

Products: Techno Module, Spacial SF
Application: Infrastructure

Main switchboard: Techno Module
Rated current: 1250A
Form: 2b
Distribution switchboards: Elsteel, Schneider electric

Vilnius combined heat and power plant


Products: Techno Module
Application: Industry

Main switchboard: Techno Module
Rated current: 630A
Form: 1 Kormotech pet food plant
